Dintek Cat6 Cable
Dintek Cat6 Cable
Dintek Cat6

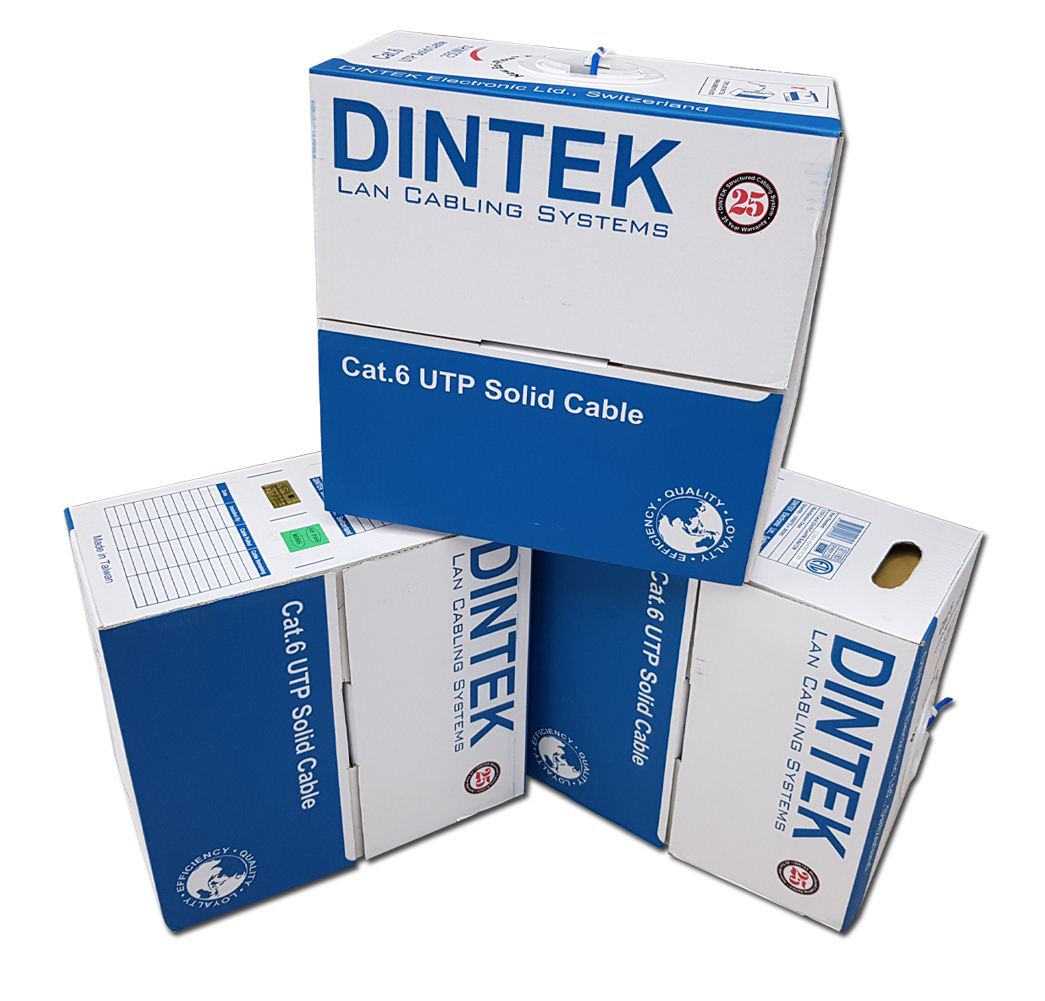

Dintek PowerMAX500 4P Cat.6 U/UTP 23AWG LSZH Dca Cable – Gray 305M Box

Original price was: $265.00.Current price is: $235.00.

Dintek Cat6 Cable

DINTEK PowerMAX500TM unshielded Cat.6 / Class E U/UTP LSZH cable is guaranteed to exceed Cat.6 specifications as set down in ANSI/TIA and ISO/IEC standards. Our PowerMAX500TM solution comprises unshielded Cat.6 component compliant patch panels, keystones, and patch cords.
When combined with DINTEK’s unshielded Cat.6 / Class E U/UTP LSZH cable, an end-to-end channel exists that maximizes data throughput and provides headroom for future technologies operating to, and beyond Gigabit Ethernet.

Features

  • Capable of handling the latest versions of Power over Ethernet
  • Conductor sizes for PowerMAX500TM Cat.6 set at 23AWG
  • LSZH jacketed 4 pair telecommunications cable
  • Successful transmission at 500Mhz up to a length of 70Mtrs
  • EZI-Pull 305Mtr Box for trouble free installation

Available on backorder

- +
SKU: 1101-04046 Categories: , , Tags: , , , ,
Dintek

Applications

  • Horizontal and backbone cable
  • 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet
  • 100 Mbps TP-PMD / 100VG-AnyLAN
  • Broadband Video / Voice / T1 / ISDN
  • 10Gbit (500Mhz) Transmission up to length of 70Mtrs

Standards Compliance

  • Performance – ANSI/TIA 568.2-D Cat.6 / ISO/IEC 11801
  • Structural – EN 13501-6:2014 | IEC 61156-5 | EN 50288-6-1
  • PoE capability – IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)
  • Environmental – Conforms to RoHS and REACH Directives
  • Flame testing – EN 60332-1-2 | EN61034-2 | EN 60754-1/2

Independent Certification

  • ETL Certification according to ANSI / TIA-568.2-D Cat.6
  • CPR Reaction To Fire Classification – Dca,s2,d2,a1 as per EN 50399

Brand

Dintek

Dintek
